MARC UNIT

Back to Coils

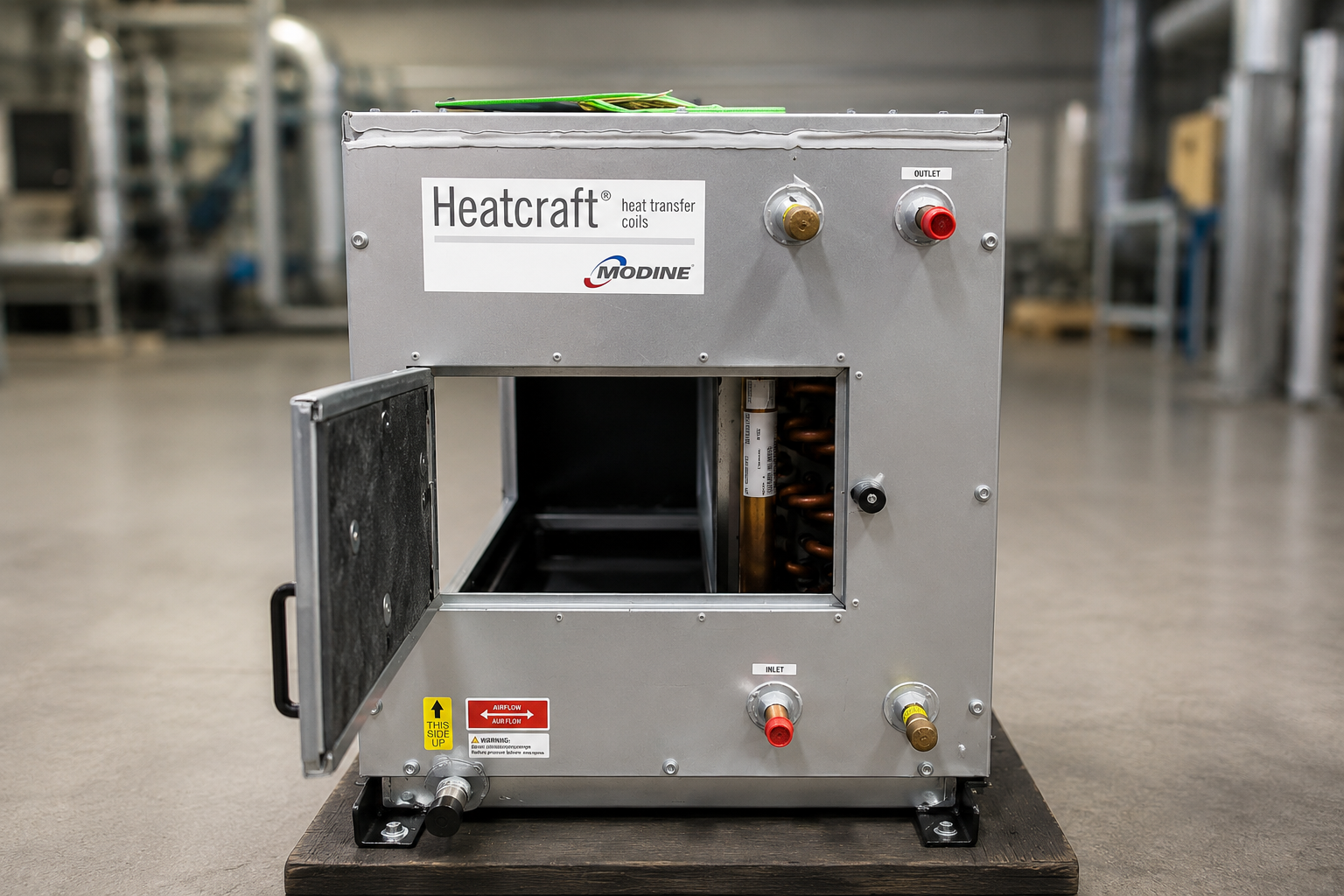

A M.A.R.C. removable coil cabinet with its access door open, showing the cased coil and inlet/outlet connections

Key Benefits

Removable Coil Design

The coil slides out through the cabinet’s access panel for service or replacement in place.

Simplified Maintenance

Clean, repair, or swap the coil without unbolting or removing the whole cabinet.

Custom Construction

Cabinet configurations custom-built to your unit, footprint, connections, and access requirements.

Auxiliary Heating or Cooling

Adds supplemental heating or cooling capacity to an existing air handler or duct system.

Typical Applications

Air Handlers Retrofit Projects Tight Mechanical Rooms Supplemental Heating & Cooling Limited Access Installations

Construction Features

  • 16 ga galvanized steel or optional stainless steel construction
  • Removable access panel for easy coil service and replacement
  • Integrated condensate drain pan
  • Double-wall insulated construction available
  • Custom-built to match replacement coil dimensions

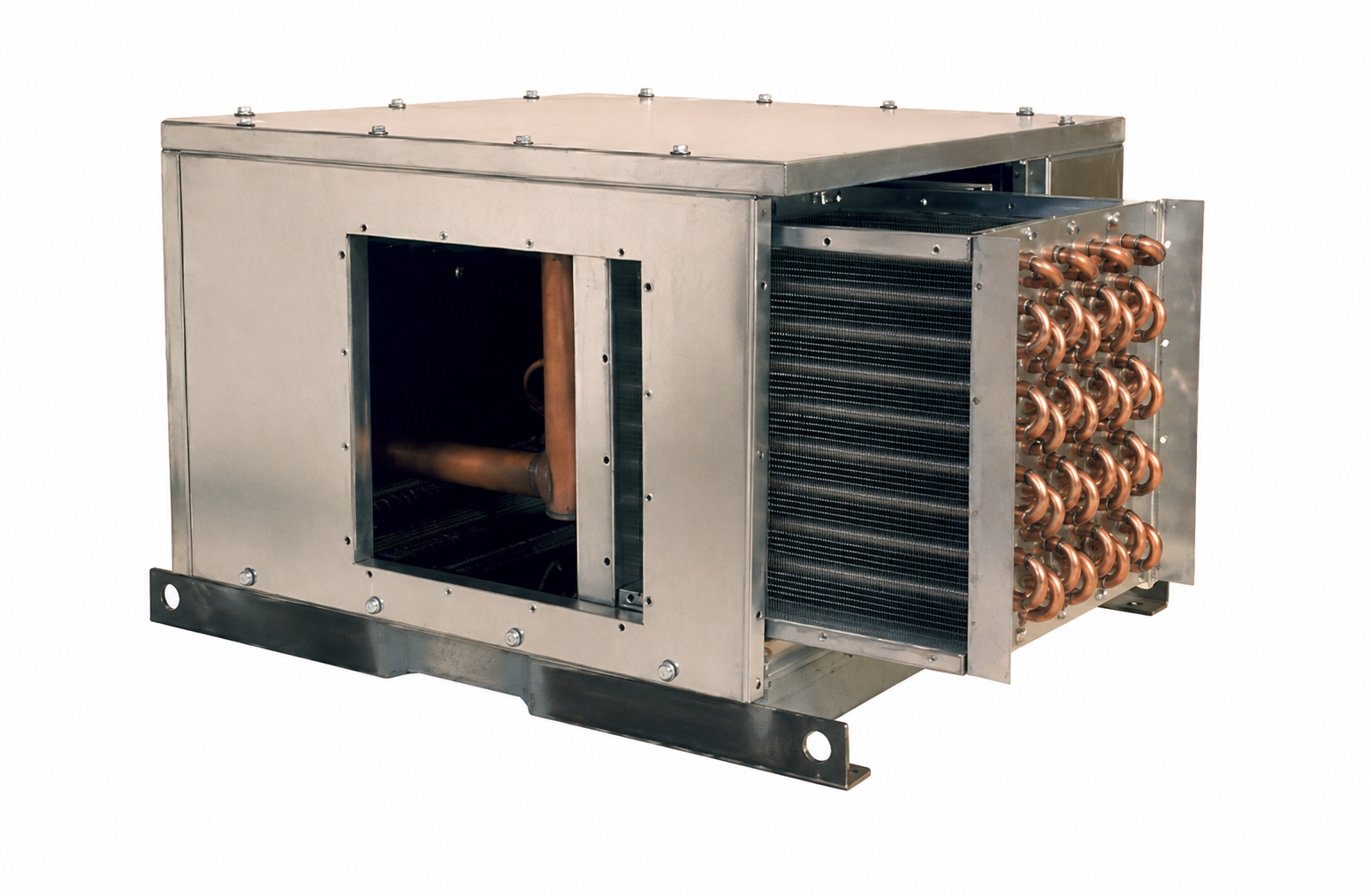

A M.A.R.C. cabinet with the finned coil partially slid out, showing the removable coil and copper return bends

Literature

Field Measurement Guide

Coilmen Support

Send the existing unit’s dimensions, connections, and the access path to its location — or the original drawings and nameplate data — and Coilmen will build a MARC cabinet matched to the application.
