Coil construction is available for Condenser, Desuperheater, and Reheat applications.

Applications:

Condenser – This coil takes the superheated vapor from the compressor and cools that vapor down to saturation. It then completely condenses all of the vapor into liquid, and continues to subcool the resulting liquid to a desired temperature below saturation.

Reheat – This is a hot gas reheat coil which takes the superheated vapor from the compressor and cools the vapor down to saturation. It then continues to condense a requested percentage of that vapor to a liquid.

Desuperheater – This coil takes the superheated vapor from the compressor and cools that vapor down to a requested temperature above saturation.

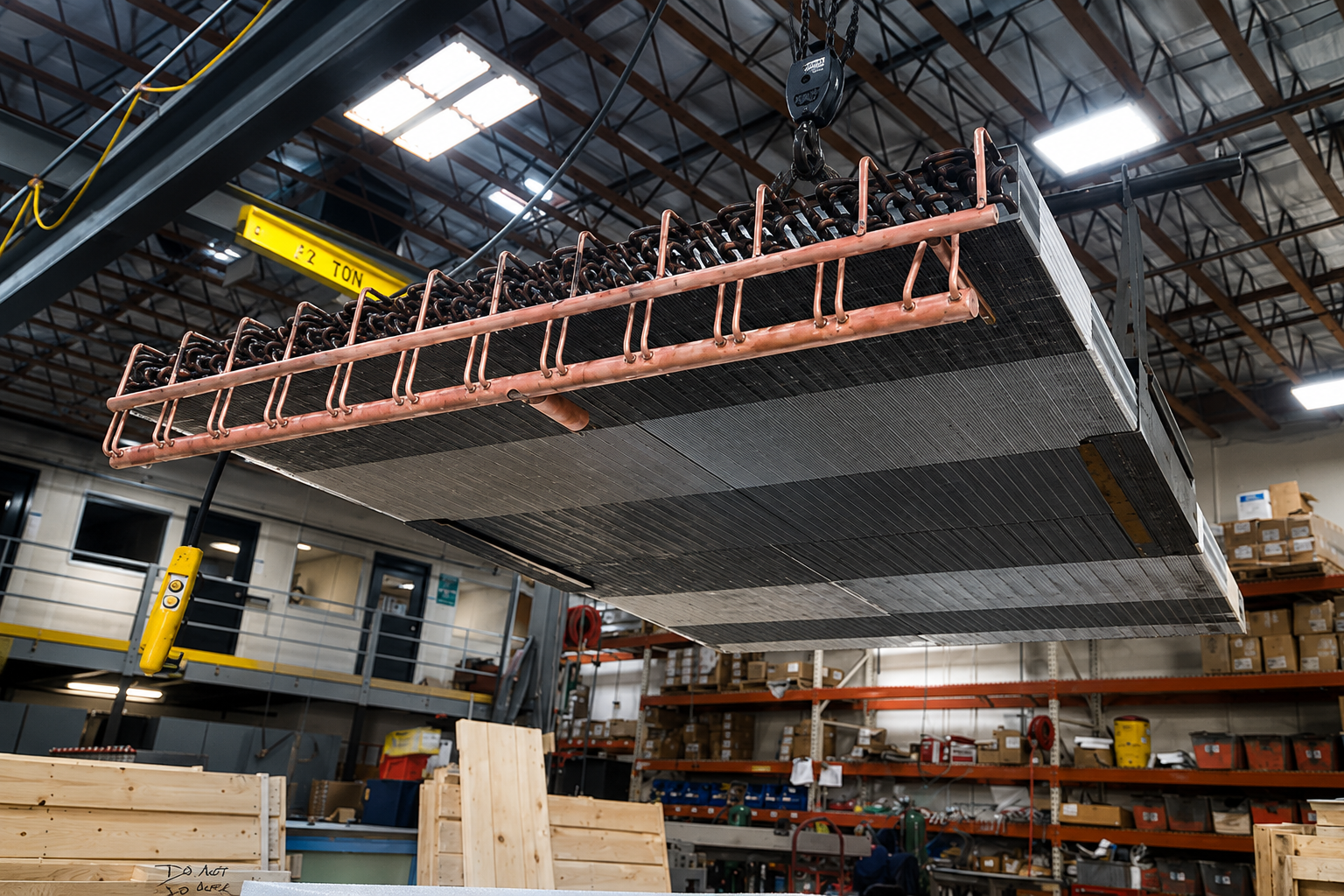

CONDENSER COIL CONSTRUCTION
Tubing	3/8″ or 1/2″ O.D. Copper, 5/8″ O.D. Copper, Stainless Steel, or Carbon Steel
Circuiting	Standard one section, Multiple sections
Rows	1, 2, 3, 4, 5, 6, 8, 10, 12
Fin Surface	Sine Wave (corrugated), New Ripple (peak and valley) or Flat
Casing	Galvanized Steel, Stainless Steel, Carbon Steel, Copper or Aluminum
Connections	Copper Sweat, Carbon Steel or Stainless Steel

Literature:

Heatcraft Certified Drawing:  Condenser, Heat Reclaim Coil
Heatcraft Condenser Coil Specification
